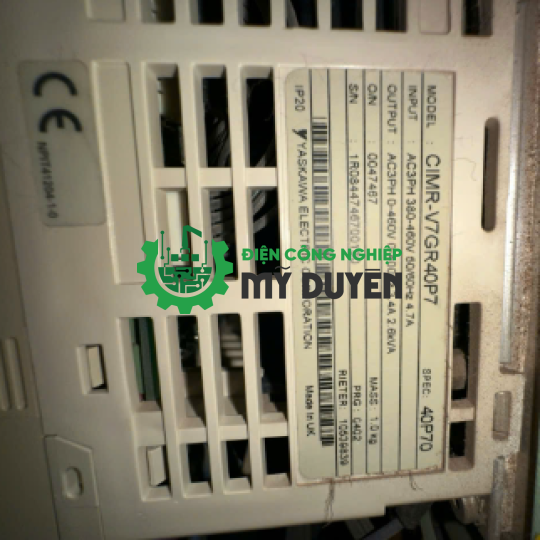

CIMR-V7GR40P7 ( INVERTER - CIMR-V7H40P7 )

CIMR-V7GR40P7 ( INVERTER - CIMR-V7H40P7 )

REMOTE Mode 1. Select REMOTE mode. The following two methods can be used to select REMOTE mode. • Select rE (REMOTE mode) for the selection. • When the LOCAL/REMOTE switching function is selected for the multi-function input selection, turn OFF the input terminal to select REMOTE mode. 2. Select the operation method by setting constant n003. n003=0: Enables the Digital Operator (same with LOCAL mode). =1: Enables the multi-function input terminal (see fig. below). =2: Enables communications

(refer to page 141). =3: Enables communication card (optional). • Example when using the multi-function input terminal as operation reference (two-wire sequence) • For an example of three-wire sequence, refer to page 112. • For more information on how to select the sequence polarity, refer to page 226. Note: When the Inverter is operated without the Digital Operator, always set constant n010 to 0. n010 = 0: Detects fault contact of the Digital Operator (factory setting) = 1: Does not detect fault contact of the Digital Operator † Operating (Run/Stop Commands) by Communications Setting constant n003 to 2 in REMOTE mode enables using Run/Stop commands via MEMOBUS communications. For commands using communications, refer to page 141. „ Selecting Frequency Reference Select REMOTE or LOCAL mode in advance. For the method for selecting the mode, refer to pag
