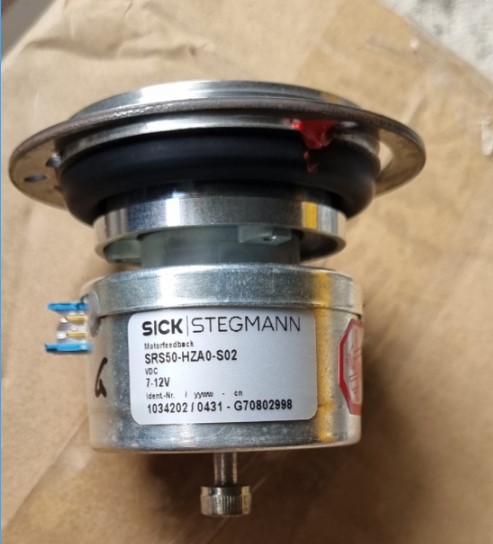

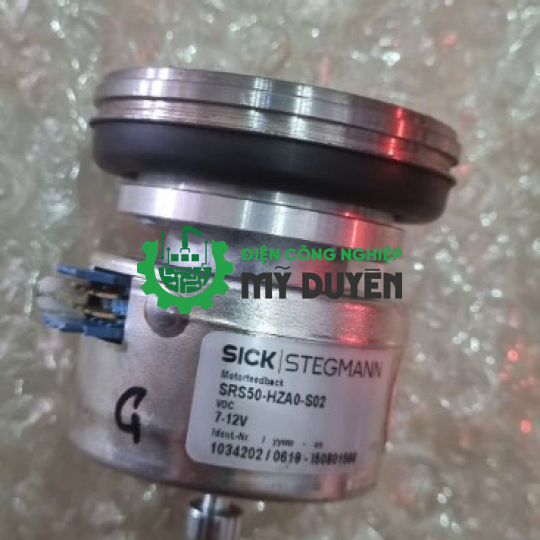

sick srs50-hza0-s02 ( SICK encoder SRS50-HZA0-S02 )
sick srs50-hza0-s02 ( SICK encoder SRS50-HZA0-S02 )
Sick - SRS50-HZA0-S21 MOTORFEEDBACK
Electrical data Connection type Male connector, 8-pin, radial Supply voltage 7 V ... 12 V Recommended supply voltage 8 V DC Power consumption 80 mA 1) Output frequency for sine/cosine signals ≤ 200 kHz
.jpg)
Performance Sine/cosine periods per revolution 1,024 Number of the absolute ascertainable revolutions 1 Total number of steps 32,768 Measuring step ≤ 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits Integral non-linearity Typ. ± 45 ″, Error limits for evaluating sine/cosine period, without mechanical tension of the stator coupling Differential non-linearity ± 7 ″, Non-linearity within a sine/cosine period Operating speed ≤ 6,000 min⁻¹, up to which the absolute position can be reliably produced Available memory area 1,792 Byte
PIN Signal Wire color Description 1 Us red 7 … 12 V supply voltage 2 GND blue Ground connection 3 REFSIN brown Process data channel 4 REFCOS black Process data channel 5 Data + grey or yellow Parameter channel RS 485 6 Data – green or purple Parameter channel RS 485 7 + SIN white Process data channel 8 + COS pink Process data channel
5.0
(10 đánh giá)
Liên Hệ Báo Giá
5.0
(10 đánh giá)
Liên Hệ Báo Giá
